10068-SR04 PCB

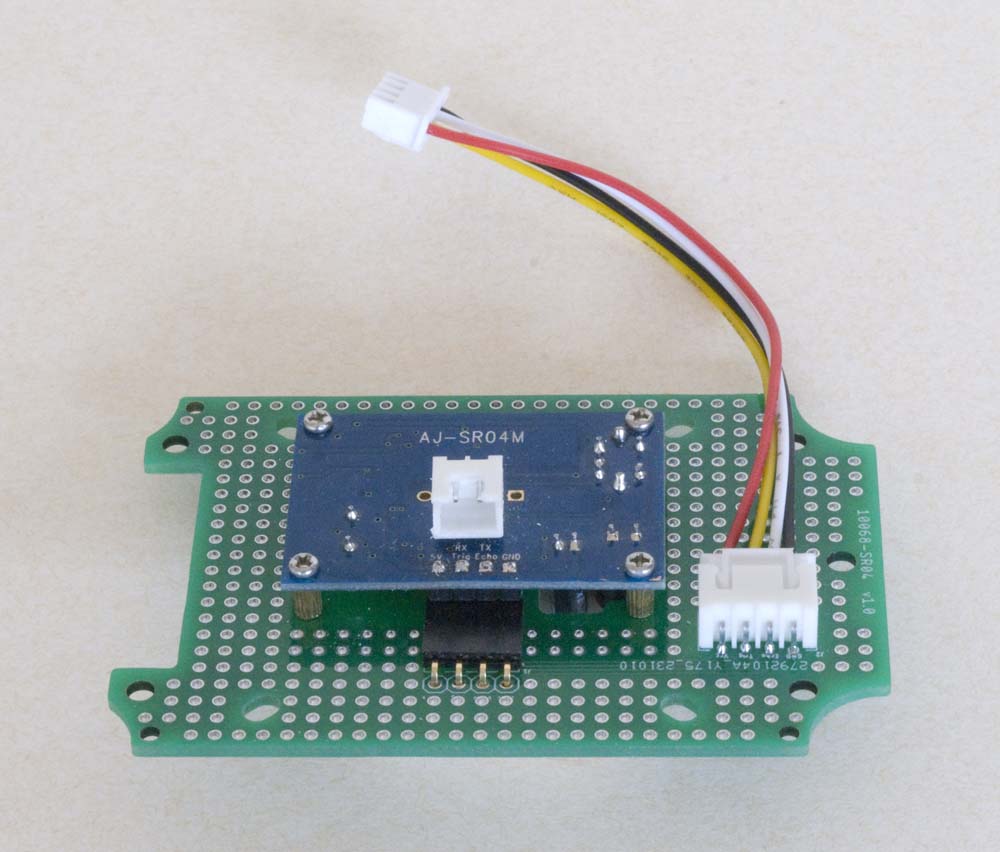

10068-SR04 Ultrasonic Sensor Controller Support Board Assembly

Board Layout

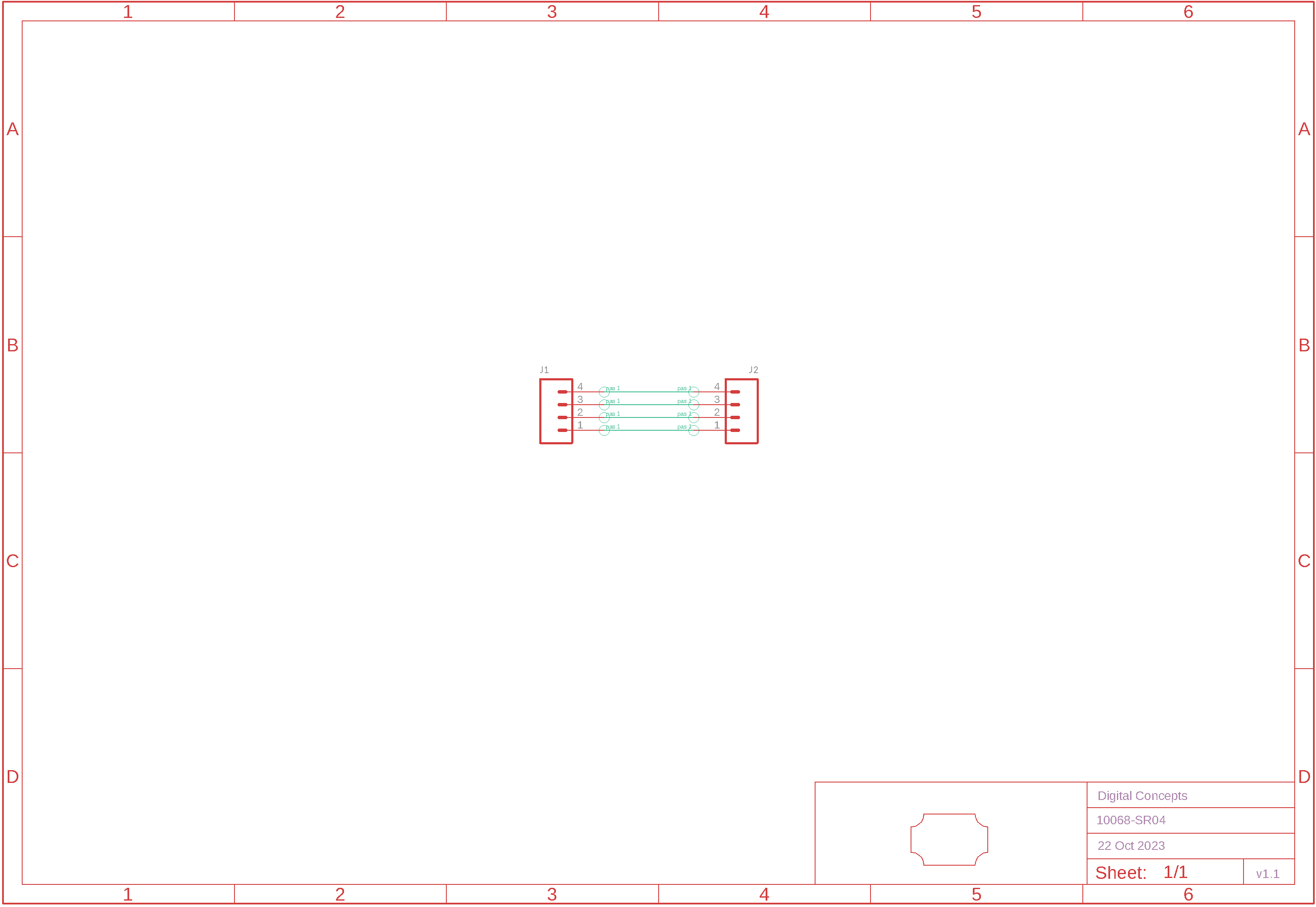

The board schematic itself is trivial. The main feature of the board is the cut-out that allows the ultrasonic sensor controller board components to project through the board, minimising the space required in a board stack.

TopBottom

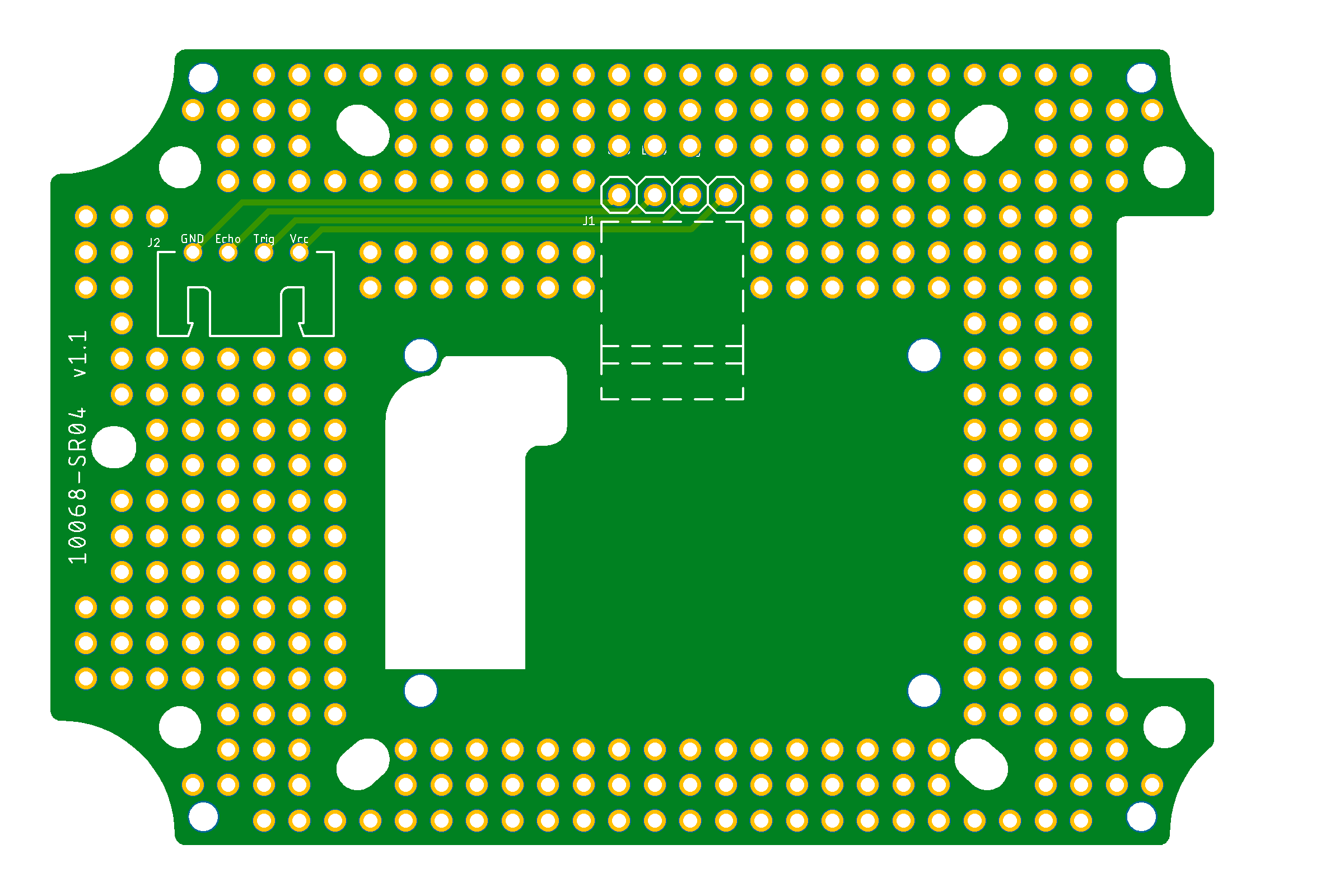

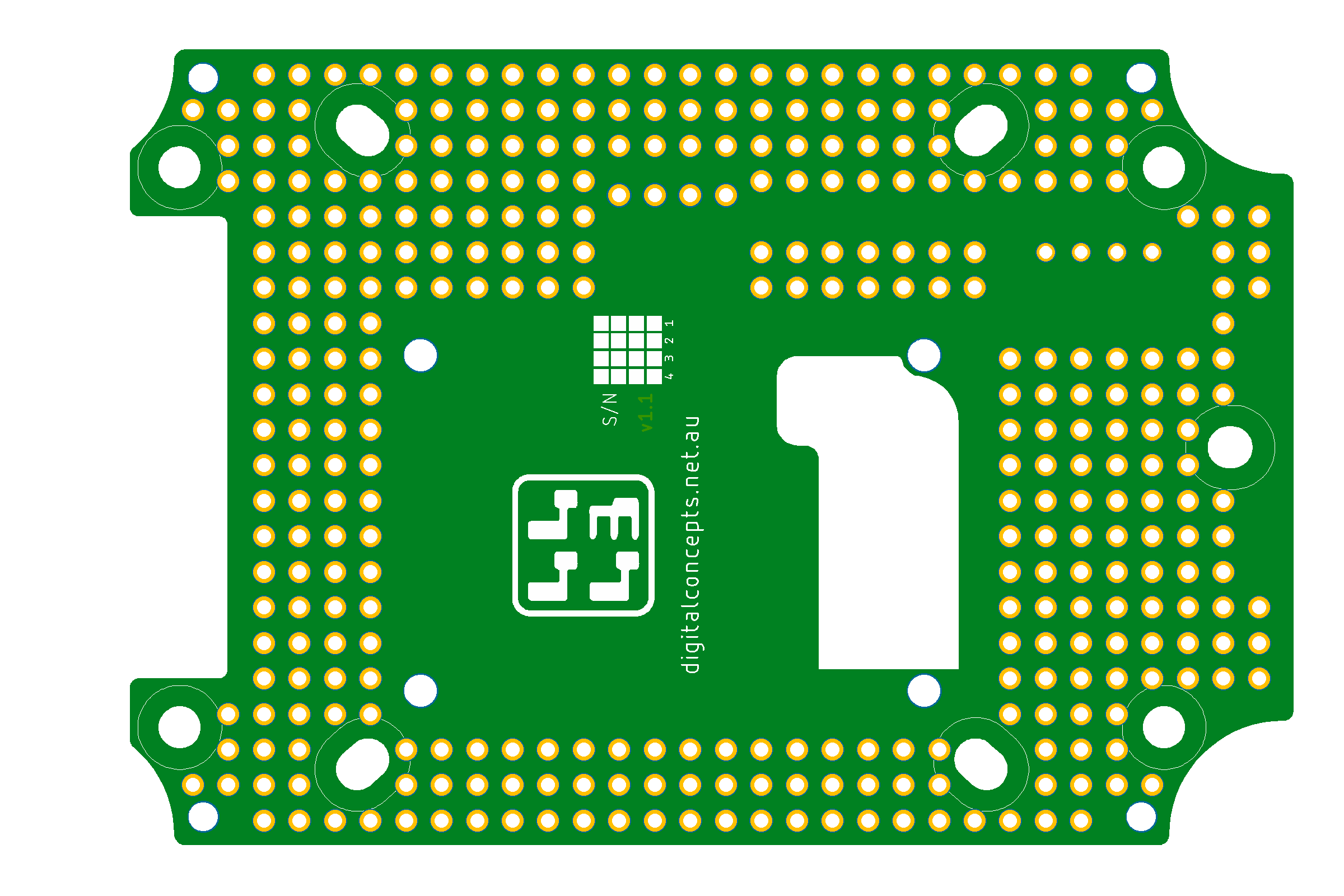

10068-SP PCB Top 10068-SP PCB Bottom
10068-SR04 [v1.1] PCB

See here for CAD and CAM files.

Configuration

The SR04 (AJ-SR04 ultrasonic sensor controller) board provides physical support for the AJ-SR04 ultrasonic sensor controller board when mounted in a board stack within a 100 × 68 enclosure.

Board Stacking

The 10068-SR04 board is designed to be used in a 'stack' configuration with an appropriate processor board.

Tank Node Stack

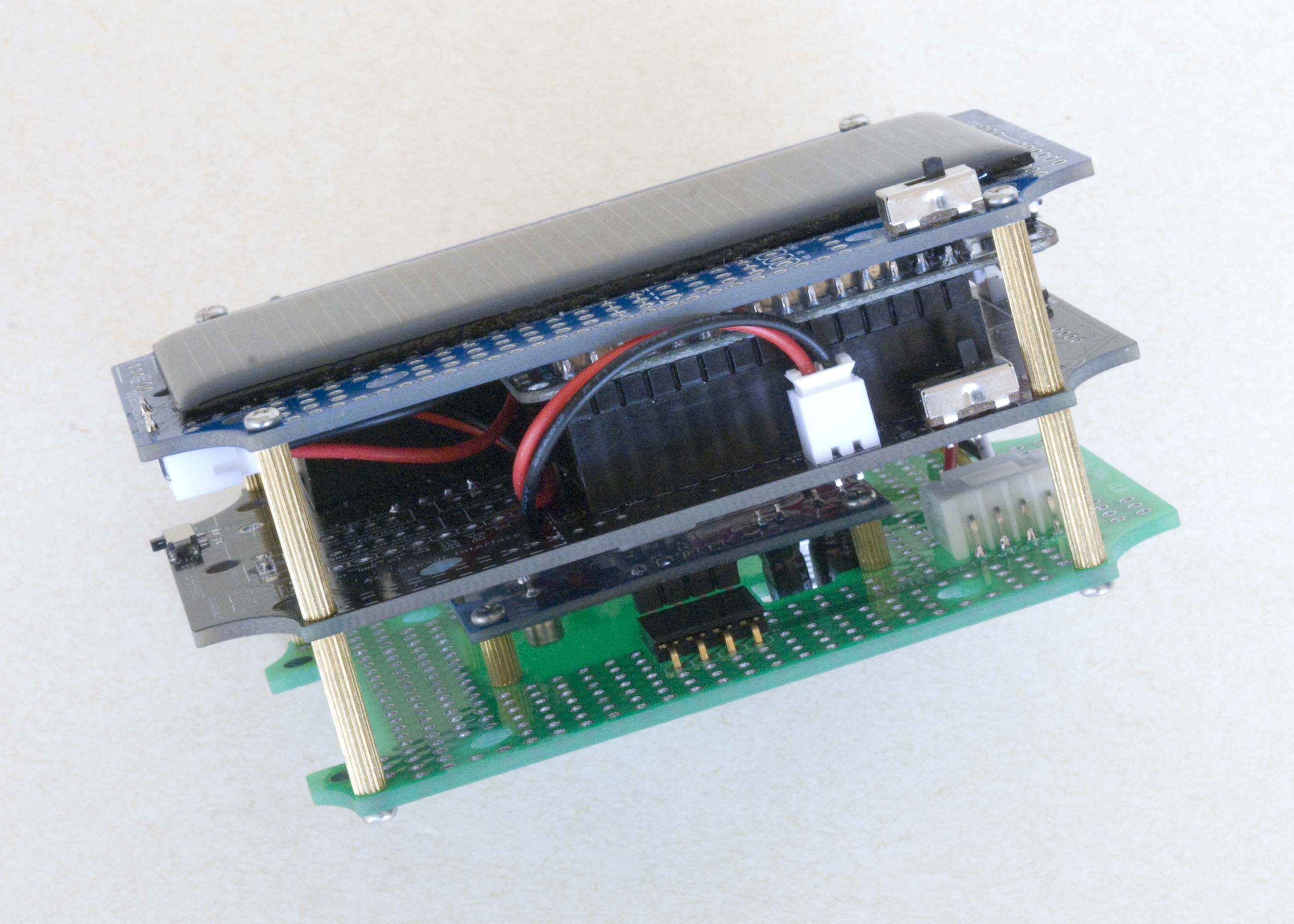

10068-SR04 PCB in Tank Node Board Stack

Further details pending

01-05-2025
